C804as-100 Bottom Emergency Shut Tank Truck Safety Valves

Model NO. : GET/C804AS-100

Connection Form : Flange

Structure : Butterfly

Pressure : 0.6MPa

Flow Direction : Unidirection

Standard : API

Application : Industrial Usage, Fule Tankers

Body Material : Aluminum Alloy

Temperature of Media : Low Temperature, Normal Temperature

Customized Support : OEM

Open Method : Mechanical /Pneumatic Can Choose

Power : Mechanical

Certificate : API

Usage : Fuel ,Oil, Jet

Warranty : 1 Year

Transport Package : Packed in Case

Specification : 4"

Trademark : GET EnERGY GET VEHICLES

Origin : China

HS Code : 8716900000

Supply Ability : 500 Set/Sets Per Month

Customization : Available

Media : Oil

Temperature : -20~+70oc

Contact Now

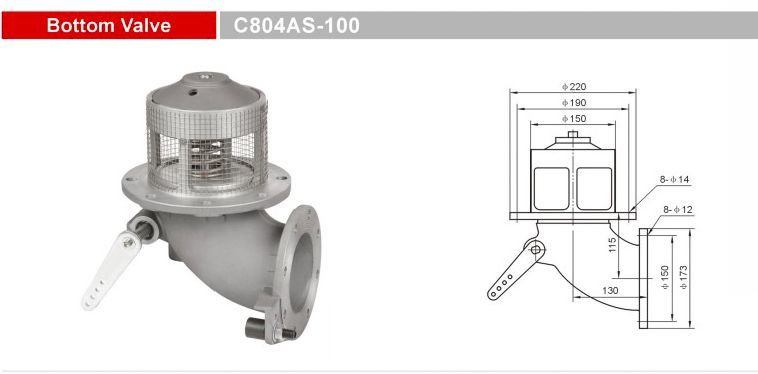

Bottom Emergency shut tank truck safety Valves

Bottom Valves-Emergency Valves	GET	C804AS-100
Technical Data
Emergency Valves Norminal Diameter	4"
Emergency Valves Working Pressure	0.6MPa
Emergency Valves Material	Aluminum Alloy
Emergency Valves Open Method	MECHANICAL
Emergency Valves Temperature Trange	-20~+70ºC
Description of Emergency Valves
Emergency shut valve is installed on the bottom of the tanker, the tope parts is tightly sealed inside the tanker. External shear groove design limits product spillage when the tanker is crashed down, it will automatically cut off itself via this groove under the situation there's no affectation on the sealing. This will efficiently protect the over rolled tanker from leakage to ensure the safety when transportation. This product is suitable for water, diesel, gasoline and kerosene and other light fuel, etc
Benefit and features of Emergency Valves
1. Special Surface treatment The whole valve body is passed a special surface process to improve the anti-corrosion 2. Hydrodynamic body Design and high lift poppet minimized pressure drop to give maximum flow rate. 3. External Shear Groove Meets the standard requirements to limit product spillage in the event of an accident. 4.Two Ways-Operation If need, can be installed a outernal cylinder to do the pneumatic control.

Function& Feature

1.Split structure,It can change valve sealing without remove the valve body.

2.Valve body is oxidized by hard anodes and is not easy abrasion when connecting with joint.

3.The interface dimensions is conform to standard APIRP1004,it can connect with standard API joint.

4.Pneumatic interlocking valve can be installed to realize interlock control by docking


MANHOLE COVE ( STEEL/ ALUMINUM/ STAINLESS STEEL)	EMERGENCY SHUT VALVES (ALUMINUM / STAINLESS STEEL / PTFE LAYER )

API ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER	VAPOR ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER
